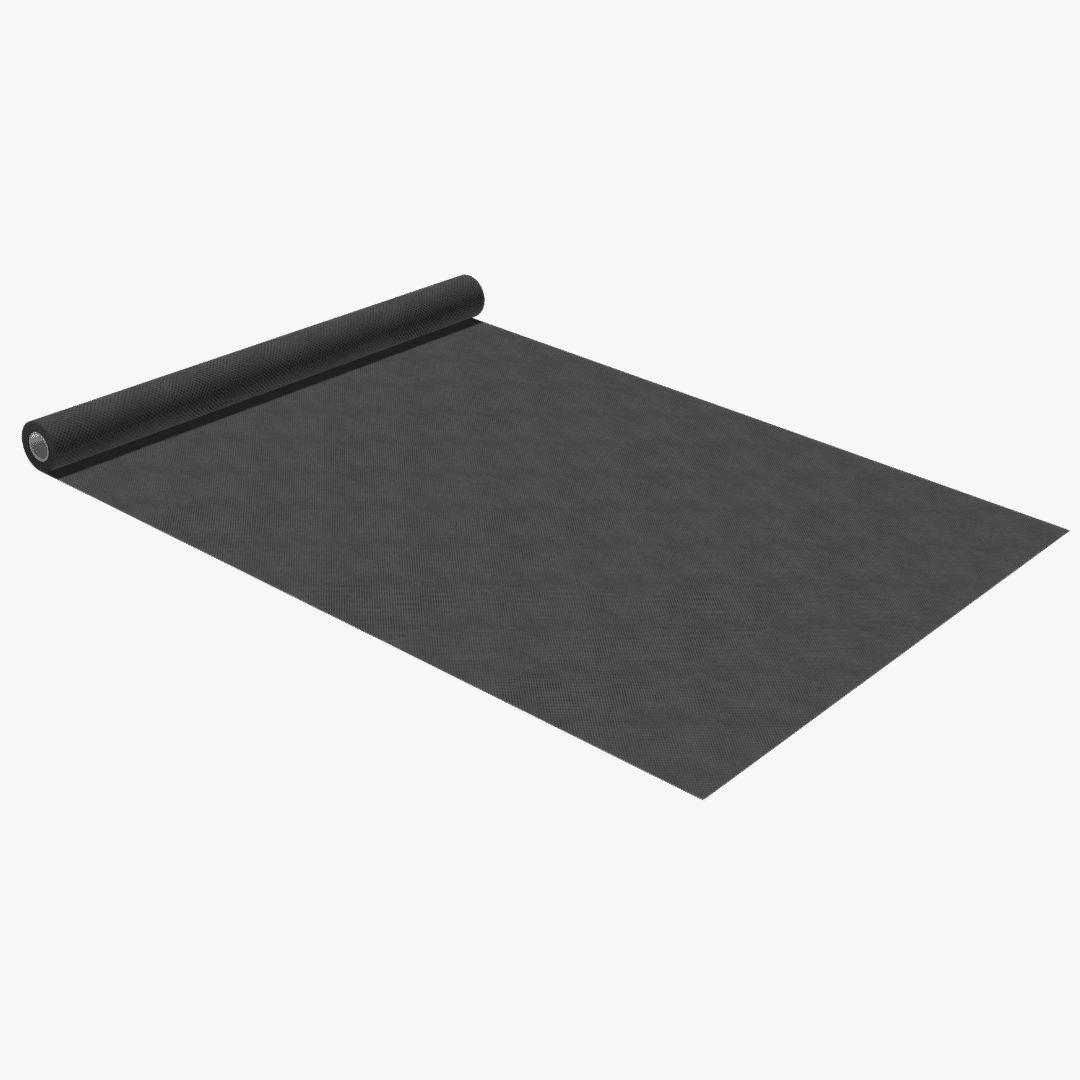

ProctorPassive Wraptite UV-SA

Name: ProctorPassive Wraptite UV-SA
SKU: 977
Availability: InStock

$1,854.38 + GST

Vapour Permeable Self-Adhering Airtight UV Resistant Membrane

ProctorPassive Wraptite UV-SA combines all the best properties of a UV resistant vapour permeable water and air barrier membrane in one innovative self-adhering product designed for use behind open jointed cladding. Wraptite UV-SA utilises a patented full coverage vapour permeable adhesive to provide high vapour permeability.

Documents

Technical Properties

Property	Standard	Value
Nominal Thickness	Calibrated deadweight micrometre	2.7800 ug/N.s
Installation Temperature		-10˚C to 60˚C
Service Temperature		-40˚C to 100˚C
Water Resistance	AS/NZS 4201.4	Water Barrier: High
Water Resistance	EN 1928:2000	Class W1 (before and after ageing)
Air Permeance	AS/NZS 4200.1, ISO 5636-5	Air Barrier (≥ 0.1 MNs/m3)
Water Vapour Permeance (Resistance)	ASTM E96 – Method B : AS4200.1:2017	1.5μg/N.s (0.67MNs/g)
Vapour Barrier Classification	AS/NZS 4200.1:2017	Vapour Permeable: Class 4
Flammability Index	AS1530.2	1 (low)*
Resistance to Dry /Wet Delamination	AS/NZS 4201.1 /4201.2	Pass / Pass
Flexibility at low temperatures	EN 1109	No cracks at -40°C
Dimensional Stability	EN1107-2	MD -0.32% CD -0.15%
Reaction to Fire	EN 11925-2, BS EN 13501-1	Class B, s2, d0**

Available Sizes

ROLL SIZES
Roll Width	1.5m
Roll Lengths	50m
Coverage	75m²

Key Features & Advantages

CodeMark Certified
UV resistance
Full coverage vapour permeable adhesive layer
High vapour permeance (AS 4200.1:2017 Class 4)
Tough material resists punctures and tears
Multiple substrate compatibility
Low VOC’s
Exceptional airtightness
Self-adhering
Approved Sealants: Soudal Gorilla MS Sealant, Soudal Gorilla Plumbers Sillicone, Soudal Gorilla 940FC, Soudal BlackJack Bituminous Sealant, Soudalseal 240FC, Soudaseal Firestop MS, Soudal Gorilla Fix All Flexi

Multiple Substrate Compatibility

|Empty|

Applications

ProctorPassive UV-SA is suitable for installation in vertical wall constructions behind ventilated facades with regularly spaced open joints no greater than 30mm wide accounting for no more than 30% of total facade surface area. The rainscreen facade has to be ventilated according to the facade manufacturers installation instructions and with a min. 20mm ventilation gap.

Long term UV resistance is dependent on the percentage of the cladding that is open, the size of the openings, and the width of the cavity.
