ProctorPassive Wraptite-SA
1500mm x 50m (75m2)
$1,361.94 + GST

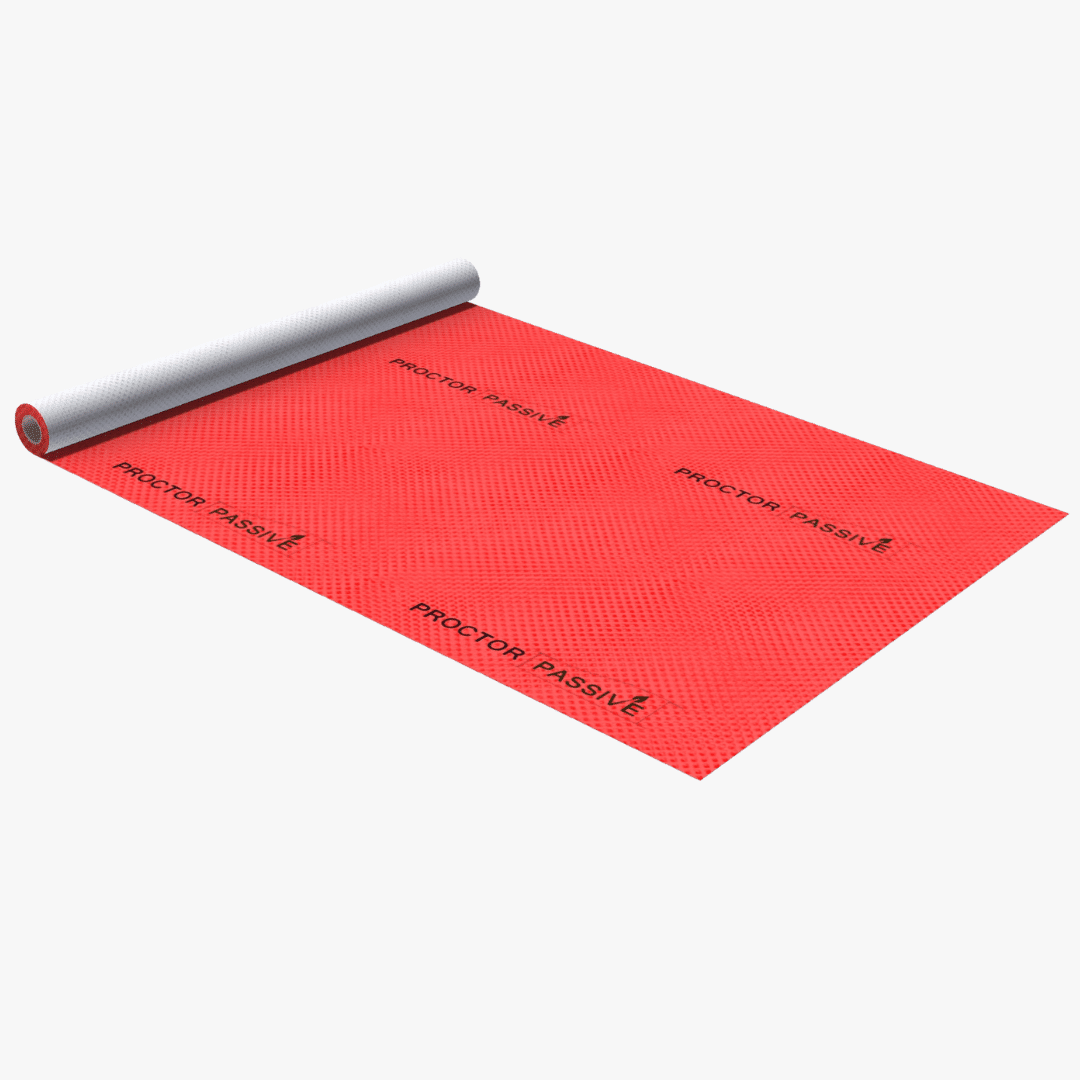

Self-Adhering Airtight and Vapour Permeable Membrane for Roof and Wall Applications
ProctorPassive Wraptite-SA is a self-adhering, water resistant, exceptionally high vapour permeable air barrier wall and roof underlay.
ProctorPassive Wraptite-SA consists of triple layer polyolefin textile with a proprietary acrylic moisture vapour permeable adhesive and release liner.
It combines the best properties of a vapour permeable membrane and a self adhesive water and air barrier in one innovative self-adhering product. Use of highly vapour permeable self-adhesive membranes decreases installation times when compared to mechanically fastened membrane systems and is suitable for residential, commercial and high rise buildings.
Continuous contact of the membrane to the sheathing by even distribution of stress over the entire bonded surface allows better resistance to wind pressures and elimination of stress point concentrations.
Wraptite SA & UV-SA - System Guide 2024| Property | Standard | Value |
|---|---|---|
| Thickness | 0.65mm | |
| Weight | 292gsm +/- 10 | |
| Water Vapour Resistance | ASTM E96 Procedure B | Pass 0.243 MN s/g |
| Air Resistance | BS ISO 5636-5:2003 | Pass |
| Water Resistance | AS/NZS 4201.4:1994 | Pass 100mm water head |
| Flammability | AS 1530.2 | Pass Flammability Index 1 |
| UV Exposure | ASTM G154 | Refer to the installation guide |
| Approved Sealant | Tremco Dymonic 100, Bostik Seal ‘n’ Flex Facade, Bostik Seal ‘n’ Flex 1 |
Roll size 1500mm x 50.0m (75m2)
- CodeMark Certified
- No primer required on most clean substrates down to -6°C
- Multiple substrate compatibility
- Low Flammability (Flammability Index: 1)
- Wide service temperature range, easily installed in all climates
- Tear, rip and puncture resistant during and after construction, reducing install costs
- Zero VOCs, and free of any chemicals on the Living Building Challenge Red List
- NZBC compliance
- Passive House Institute Certified Component phA
- Self-adhering, water resistant, exceptionally high vapour permeable air barrier wall and roof underlay
- Approved Sealants: Soudal Gorilla 940FC, Soudal BlackJack Bituminous Sealant, Soudal Gorilla Fix All Flexi, Tremco Dymonic 100
|Empty|
Wraptite Systems Guide
Download the Wraptite Systems Guide for open joint and closed joining cladding applications
