ProctorPassive HC8 EnkaVent
$965.44 + GST
Hairy Chest’ Drainage Spacer Mat

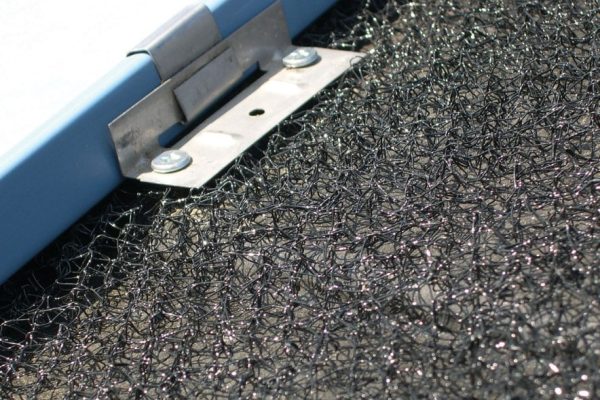

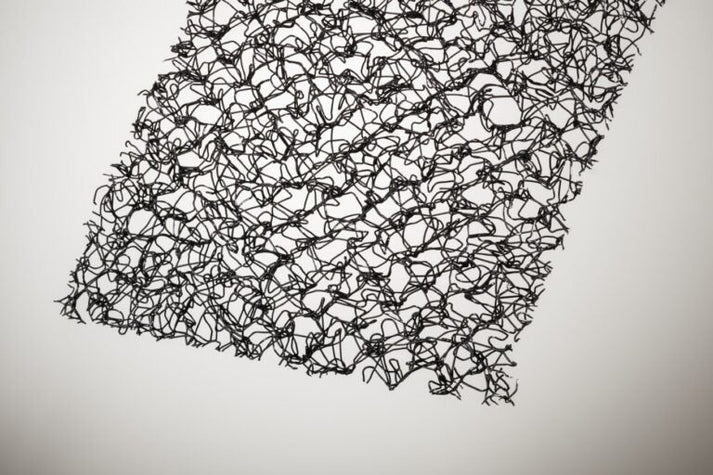

ProctorGeo HC8 EnkaVent Drainage Spacer Mat is a three dimensional shaped mesh of polyamide monofilaments, tangled and fused together.
ProctorPassive HC8 Drainage Mat - Product Technical
| Property | Standard | Value |
|---|---|---|
| Weight | EN 9864 | 210g/m2 (±20) |
| Nominal Thickness | 8mm (±1) | |
| Tensile Strength MD | EN ISO 10319 | 1.6kN/m |
| Tensile Strength CD | EN ISO 10319 | 1.1kN/m |
| Working Temperature | -30oC ~ 80oC | |
| Ignitability Index | AS1530.3 | 0 |
| Spread of Flame Index | AS1530.3 | 0 |
| Heat Evolved Index | AS1530.3 | 0 |
| Smoke Developed Index | AS1530.3 | 0-1 |
| Reaction to Fire | EN 1350-1 / EN-ISO 11925-2 | Euroclass E |
| Service Life | EN 13252 Annex B | 50 Years |
| UV Exposure | 2 weeks |
| ROLL SIZES | |
|---|---|
| Roll Width | 1,020 mm |
| Roll Lengths | 75m |
| Coverage | 76.5m² |
- Provides a drainage pathway for condensate or moisture that may get under the roof sheet
- Provides space for air movement between the roof deck/underlay and metal roof
- Reduces corrosion risk – particular importance with zinc or galvanized steel roof sheets
- 14dB reduction in impact noise on metal roofing
- Allows for movement of the roof sheet under temperature fluctuations
- Polyamide (PA6) filaments offer high dimensional stability in all climate conditions
- Contributes to a reduction in temperature of the roof substrate from solar radiation
- High air void (95%) for ultimate drainage capacity
- Flexible and lightweight for ease of install
- Easily cut with scissors or knife
- AS1530.3 testing (0,0,0,0-1)
