ProctorGeo Vap 120

Name: ProctorGeo Vap 120
SKU: 980
Availability: InStock

$266.31 + GST

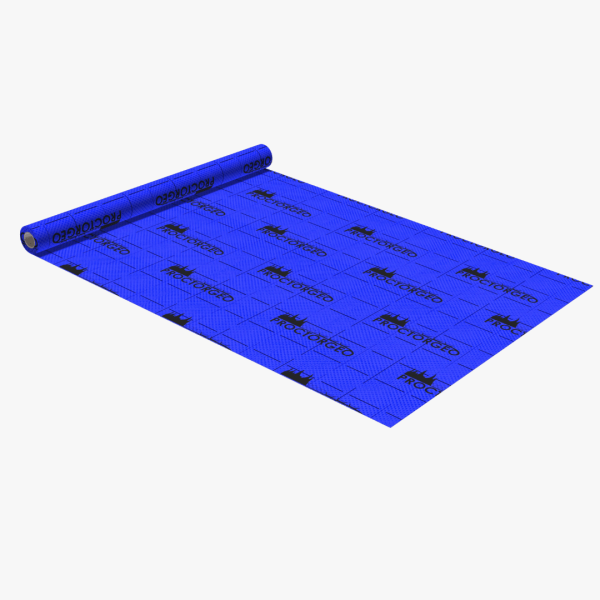

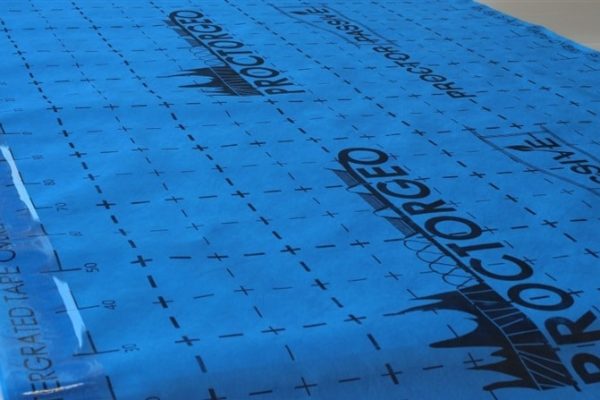

ProctorGeo Vap120 is a light duty vapour retarder and convection barrier.

The high air & water vapour resistance of the two-layer polyolefin non-woven membrane resists the flow of vapour by both diffusion and air movement through wall, ceiling and floor assemblies thus helping protect the building fabric and insulation from condensation and related problems such as mould, timber rot, corrosion and loss of thermal resistance.

When installed as a continuous layer, ProctorGeo Vap120 will help form an airtight layer reducing the loss of heated air or cooled air from the building thus improving the energy efficiency of the building enclosure.

Documents

Technical Properties

Testing to ASTM1530.2 has only been conducted on sections of material without integrated tape.
It should not be left exposed to UV for longer than 4 weeks.

Property	Standard	Value
Vapour Permeability	ASTM E96 (Procedure B)	0.02 ug/N.s
Vapour Resistance	ASTM E96 (Procedure B)	49 MN.s/g
Air Control Classification	AS/NZS 4200 (ISO 5636.5)	Air Barrier (≥0.1 MN s/m³)
Water Barrier	AS/NZS 4201.4	High
Tensile Strength MD	AS 1301.448	MD:4.5kN/m, CD:3.1kN/m
Edge tear Resistance	TAPPI T470	MD:227N, CD:157N
Flammability	AS 1530.2	Low (≤5)*
Resistance to Dry and Wet Delamination	AS/NZS 4201.2 AND 4201.3	Pass
Shrinkage	AS/NZS 4201.3	< ±0.5%

Available Sizes

ROLL SIZES
Roll Width	1500mm
Roll Lengths	30m
Coverage	45m²

Key Features & Advantages

Suitable for use in some corrosive environments
Ideal for swimming pools and humid buildings
Factory applied integrated tape
Highly water vapour resistant & Air tight
Non perforated & Non conductive
Lightweight and easy to handle
Excellent tear resistance
Slightly translucent for ease of installation

Multiple Substrate Compatibility

|Empty|

Applications

Applications

Vapour retarders are typically used with sheet roof and wall claddings, in constructions located in cold climates, buildings with high internal humidity such as indoor swimming pools and museums, air-conditioned buildings located in hot and humid climates and refrigerated buildings such as cold stores and ice rinks.

Vapour retarders should not be used on the exterior side of insulation in cold and temperate climates as a sarking where there is a risk that condensation will form on the interior face of the retarder.

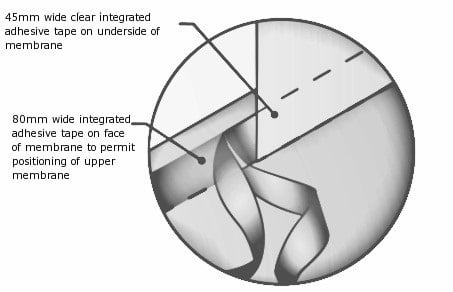

Integrated Tape

To improve the integrity of installation, ProctorVap 120 is supplied with a factory applied integrated tape on both the outer face of the lower course and rear face of the upper membrane.

Durability

Ensure that ProctorGeo Vap120 is covered as soon as possible, and not left exposed to UV for longer than 4 weeks. ProctorGeo Vap120 is not to be used in installations where it could be exposed to long term UV radiation.
