EcoDri FR Underlay
1250mm x 40.0m (50m²)
$215.00 + GST
Build a sustainable future with DriSpace.
EcoDri FR is made using 80% Global Recycle Standard certified recycled non woven materials.
Overview

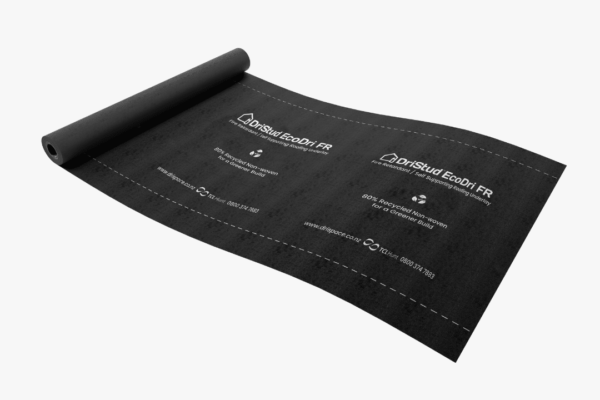

EcoDri FR Underlay is a heavy-weight, fire-retardant, self-supporting synthetic roof underlay with excellent vapour permeability. It features a microporous, water-resistant film laminated to two layers of non-woven spun-bonded polypropylene. EcoDri FR is designed for use beneath roof claddings to assist with the weathertightness and moisture management of buildings.
EcoDri FR is made using 80% (GRS) recycled non-woven materials and features a dark grey top and white bottom. The hues may vary depending on the recycled material content.
EcoDri-Specification-Pack
EcoDri-Brochure| Property | Standard | Value |
|---|---|---|
| Weight (m²) | 181 ±3 g/m2 | |
| Flammability index | AS1530.2-1993 | ≤ 5 |
| Fire Retardant | Yes | |
| Water Vapour Resistance | ASTM E96 Procedure B | ≤ 0.5MN s/g; Pass |
| Absorbancy | AS/NZS 4201: Part 6 | Requirement ≥150 g/m²; Pass |
| Water Resistance | AS/NZS 4201.4:1994 | ≥100mm H₂O; Pass |
| Resistance to UV exposure | ASTM G155 | 21 days |
| ROLL SIZES | |
|---|---|
| Roll Width | 1250mm |
| Roll Lengths | 40m |
| Coverage | 50m² |
|Empty|
|Empty|
|Empty|
Wraptite Systems Guide
Download the Wraptite Systems Guide for open joint and closed joining cladding applications
Sales & Technical Support
Need more information about a product? Contact us by phone and speak to our helpful team.
